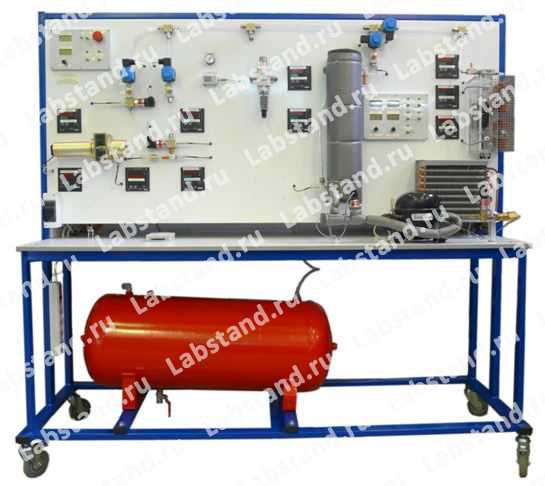

The educational and laboratory complex “Cryogenic and refrigeration equipment” is designed to study the design and operating principles of equipment for obtaining low temperatures and perform a set of laboratory work in the field of training “Refrigeration, cryogenic equipment and life support systems.” Composition of the Educational and Laboratory Complex: — Stand “Cryogenic and refrigeration […]

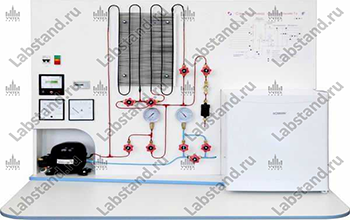

A working model of a single-chamber refrigerator with refrigeration unit components and instruments for measuring temperature, pressure, current, voltage, and electricity consumption located on a vertical panel. Output of parameters to a PC. Possible malfunctions. Execution options:

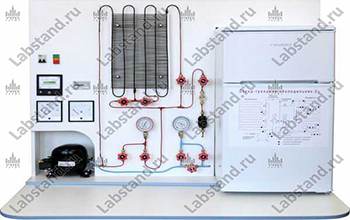

A working model of a two-chamber refrigerator with components of the refrigeration unit and instruments for measuring temperature, pressure, humidity, current, voltage, and electricity consumption located on a vertical panel. Output of parameters to a PC. Possible malfunctions.

It is a mini-refrigerator based on Peltier elements with an operating temperature from -5 to +15°C with a microprocessor meter/regulator.

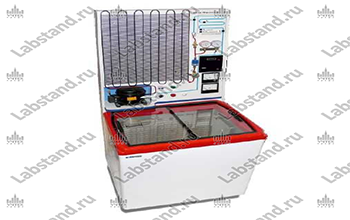

A working model of a freezer (chest) with components of the refrigeration unit and instruments for measuring temperature, pressure, humidity, current, voltage, and electricity consumption placed on a vertical panel. Output of parameters to a PC. Possible malfunctions.

An operating model of an air conditioner (split system) with air conditioner units and instruments for measuring temperature, humidity, pressure, current, voltage, and electricity consumption located on a vertical panel. Output of parameters to a PC. Possible malfunctions. * manual execution

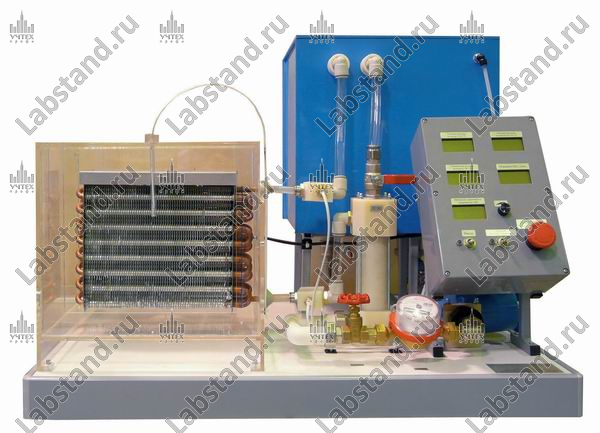

Designed to study the causes of the influence of contamination of the surfaces of the air channels of liquid-air heat exchangers and methods for restoring the original characteristics. It is a table stand (supplied without a table). The base of the stand is made in the form of a frame structure made of a metal […]

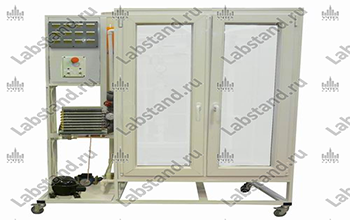

The training stand is a multi-circuit cooling system of a production facility (chamber, bunker, cooling hold, etc.). The first cooling circuit is a closed system with a refrigerant circulating through it — R134a, operating on a reverse Carnot cycle. The first circuit includes a hermetically sealed single-stage piston compressor, a plate-type water-cooled condenser (imitation of […]

The training stand is a multi-circuit cooling system of a production facility (chamber, bunker, cooling hold, etc.). The first cooling circuit is a closed system with a refrigerant circulating through it — R404a, operating in a reverse Carnot cycle. The first circuit includes: • piston semi-hermetic two-stage compressor with equipment mounted on it: economizer, expansion […]

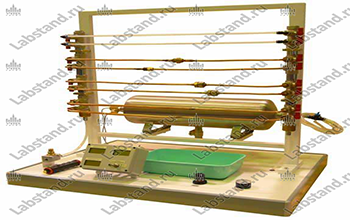

Designed to study methods for detecting leaks in high-pressure gas systems. Air is used as the working medium for the stand. It is a table stand (supplied without a table). The base of the stand is made in the form of a frame structure made of a metal profile with a polymer coating, covered with […]

Designed to study possible malfunctions of refrigerators and ways to eliminate them. Provides the introduction of faults in the form of thermostat malfunctions, condenser clogging; capillary clogged; reducing pressure in the circuit. It is a floor-mounted structure. The base of the stand is made in the form of a frame structure made of a metal […]

A piston compressor used in refrigeration technology with parts and components partially removed for a visual study of the design and operating principle. The surfaces formed as a result of material removal are colored red and yellow. The kit includes a description of the design and operating principle of the compressor.

An air piston compressor with parts and components partially removed for a visual study of the design and operating principle. The surfaces formed as a result of material removal are colored red and yellow. The kit includes a description of the design and operating principle of the compressor.

Piston compressor, with its preliminary preparation for further disassembly and assembly. After assembly, the compressor is not operational. The kit includes a set of tools for assembly and disassembly operations, a description of the design and the sequence of assembly and disassembly operations.

A piston compressor used in refrigeration technology with its preliminary preparation for further disassembly and assembly. After assembly, the compressor is not operational. The kit includes a set of tools for assembly and disassembly operations, a description of the design and the sequence of assembly and disassembly operations.

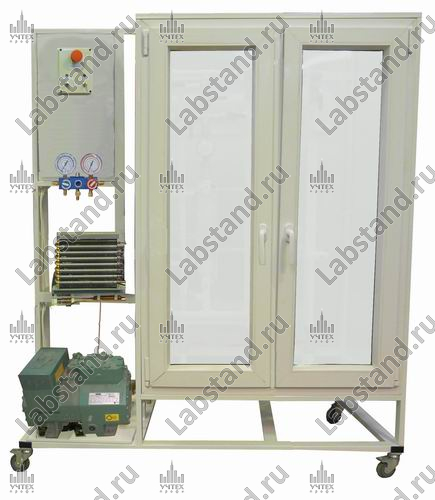

The kit allows you to install a refrigeration unit, followed by evacuation, filling and starting the system. The set includes: – space frame; – compressor-condenser unit; – air cooler; – thermostatic valve; – high pressure switch; – low pressure switch; – viewing window; – filter drier; – pressure gauges; – shredder valve; — switchboard; – […]

The kit allows you to learn how to solder and connect pipes of various diameters and fittings. The kit includes: – a set of soldering diagrams and installation diagrams for laying pipelines; – spatial frame for laying and fastening the assembled pipeline using clamps; – tube of 2 standard sizes in coils; – tees; – […]

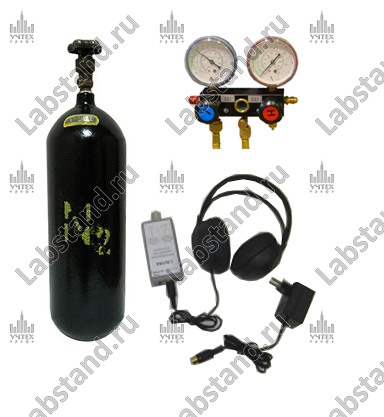

The kit is designed for crimping the assembled pipe circuit and checking its tightness. Tightness control and leak detection are carried out with an ultrasonic leak detector or soaping. The kit includes: – nitrogen cylinder; – pressure reducing valve; – ultrasonic leak detector.

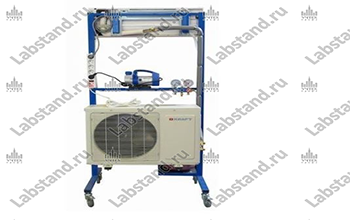

The set of equipment (stand) “Installation of air conditioning” is designed to study the piping of a split air conditioning system and the process of filling the air conditioner with refrigerant. In this installation, the refrigerant is a consumable material. The stand is a frame structure on which elements of a split air conditioning system […]

The software package allows you to gain skills in installation, troubleshooting and troubleshooting of typical equipment malfunctions of refrigeration units and air conditioning systems. Using 3D graphics and interactive animation, the characteristics and behavior of refrigeration units are reproduced on the screen in real time while simulating the most common faults according to a random […]
