The stand is designed to study the friction moments in rolling bearings depending on the load. The stand is a tabletop frame structure made of a metal profile pipe 20×20 mm with polymer painting. Dimensions of the frame structure are 180x180x150 mm. The frame structure is equipped with elastic legs. A housing with seats for […]

The stand is designed to study the friction moments in sliding bearings depending on the load. The stand is a tabletop frame structure made of a metal profile pipe 20×20 mm with polymer painting. Dimensions of the frame structure are 180x180x150 mm. The frame structure is equipped with elastic legs. A housing with seats for […]

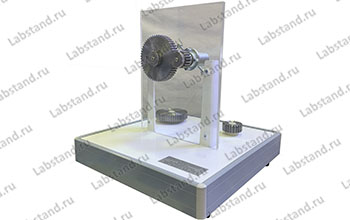

The stand is designed to study the influence of the type of transmission and the relative position of the teeth on the gear ratio. The package includes a laptop. The stand is a tabletop frame structure with a vertical panel made of rolled metal with polymer painting. The frame structure is equipped with elastic legs. […]

The stand is designed to study friction in gears with involute gearing. The stand is a tabletop frame structure made of rolled metal with polymer painting with a vertical panel made of transparent polymer material. The frame structure is equipped with elastic legs. The panel has two housings with shafts in bearing supports. The shafts […]

The stand is designed to study the force-deflection characteristics of flat springs. The stand is a tabletop frame structure made of rolled metal with polymer painting. Dimensions of the frame structure are 400x350x450 mm. The frame structure is equipped with elastic legs. A fastening (clamping) device for the elastic elements under study is installed on […]

The stand is designed to study the pressure-deflection characteristics of elastic membranes. The stand is a tabletop frame structure made of rolled metal with polymer painting. Dimensions of the frame structure are 500x400x450 mm. The frame structure is equipped with elastic legs. A pressure generation unit based on a manual pneumatic pump and a module […]

The stand provides determination of the stiffness of twisted cylindrical and conical compression springs depending on geometric parameters. The kit includes six springs. The stand is a metal structure made of rolled metal with an anti-corrosion coating. The complex contains a manually driven loading device based on a “screw-nut” pair. The force acting on the […]

The stand is a floor frame structure made of rolled metal with polymer painting. The frame structure has two parallel vertical guides with a diameter of 12 mm. Two movable traverses are installed on the guides through linear ball bearings. The lower traverse has kinematic excitation of vertical oscillatory movements with a frequency of 5 […]
