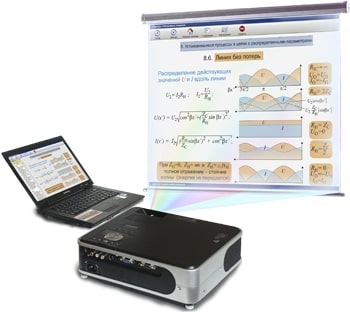

A set of equipment for demonstrating didactic material in classrooms for up to 35 people. Contents: projector, screen (150×150 cm), laptop, teaching software for courses: — electrical engineering; — theoretical foundations of electrical engineering; — electronics; — theory of automatic control; — electric drive control systems; — basics of electric drive; — basics of metrology […]

Compound: – a dynamic light tablet containing: controls; equivalent circuits of electrical circuits, expressions of Ohm’s law for the passive, active section of the circuit and closed circuit; circuits for serial and parallel connection of receivers; control questions (at least 14 pcs.) — power unit; – telescopic pointer. Dimensions no more than 850x600x60 mm. Weight, […]

Overall dimensions (WxHxD): 600x130x250 mm. Weight, no more than 10 kg. Compound: 1. Monoblock “PROFI-A”. 2. Set of functional modules “Electrical circuits and fundamentals of electronics”: linear DC circuits; linear AC circuits; three-phase circuits, star connection; three-phase circuits, delta connection; nonlinear electrical circuits; diodes; transistors; operational amplifier; logical elements and triggers. 3. Module “Power and […]

Overall dimensions (WxHxD): 600x130x250 mm. Weight no more than 10 kg. Compound: 1. Monoblock “PROFI-A”. 2. Set of functional modules “Electrical circuits”: linear DC circuits; linear AC circuits; three-phase circuits, star connection; three-phase circuits, delta connection; nonlinear electrical circuits. 3. Module “Power and phase meter”. 4. Specialized stand for storing functional modules. 5. Set of […]

Overall dimensions (WxHxD): 600x130x250 mm. Weight, no more than 10 kg. Compound: 1. Monoblock “PROFI-A”. 2. A set of functional modules “Theoretical foundations of electrical engineering and fundamentals of electronics”: linear DC circuits; linear AC circuits; three-phase circuits, star connection; three-phase circuits, delta connection; nonlinear electrical circuits; inductively coupled elements; chain with distributed parameters; study […]

Overall dimensions (WxHxD): 600x130x250 mm. Weight, no more, kg: 10. Compound: 1. Monoblock “PROFI-A”. 2. A set of functional modules “Theoretical foundations of electrical engineering”: linear DC circuits; linear AC circuits; three-phase circuits, star connection; three-phase circuits, delta connection; nonlinear electrical circuits; inductively coupled elements; chain with distributed parameters; study of a plane-parallel field; conducting […]

Overall dimensions (WxHxD): 600x130x250 mm. Weight, no more than 10 kg. Compound: 1. Monoblock “PROFI-A”. 2. A set of functional modules “Theory of electrical circuits”: linear DC circuits; linear AC circuits; three-phase circuits, star connection; three-phase circuits, delta connection; nonlinear electrical circuits; inductively coupled elements; circuit with distributed parameters. 3. Module “Power and phase meter”. […]

Overall dimensions (WxHxD): 400x200x300 mm. Weight, no more than 10 kg. Compound: 1. Monoblock containing: unregulated power supply, regulated power supply, function generator, field for installing functional modules, measuring instruments, discretely adjustable active resistance, discretely adjustable capacitance. 2. Set of power cables and connecting wires. 3. Technical description. Note: For the operation of educational equipment, […]

Overall dimensions (WxHxD): 850x610x300 mm. Weight, no more than 60 kg. Compound: 1. Modules: power supply; multimeters; measuring (2 pcs.); additional resistances; function generator; single-phase transformer; frequency converter; electrical machines; power meter. 2. Typesetting field. 3. A set of laboratory mini-modules. 4. Electric machine unit. 5. Frame. 6. Set of power cables and connecting wires. […]

Overall dimensions (WxHxD): 3200x1600x650 mm. Weight, no more than 270 kg. Compound: 1. Modules of electrical circuits and electronics: power supply; multimeters; function generator; input Output; power meter (U, I, P, f, cosφ, φ); measuring 2. Modules of electrical machines and electric drives: power supply of the stand; food 2; power meter; additional resistances (2 […]

Compound: Module «Power module and USB oscilloscope» Module «Function Generator» Module “Hard Magnetic Materials” Module “Soft magnetic materials. Temperature coefficient of resistance/capacitance» Module «RLC Meter» Module «Multimeters» Module “Barrier effect. Photoconductivity» Module “Forward and inverse piezoelectric effect” Set of minimodules A set of conductors on the topic “Electrical conductivity” Hall Sensor Insulation resistance measuring device […]

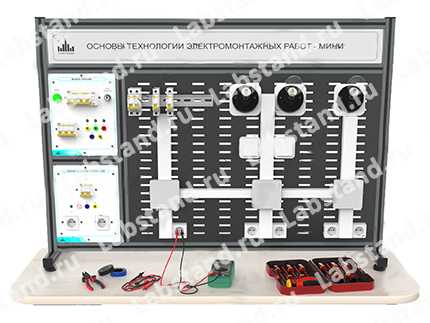

The laboratory stand is intended for conducting practical classes in schools and lyceums on the basics of electrical installation technology using the example of installing simple electrical wiring diagrams. The operating voltage in the stand does not exceed the safe level (36 V). Dimensions (WxHxD), no more than 862x630x310 mm. Weight, no more than 30 […]

Overall dimensions (WxHxD): 1710x610x300 mm. Weight, no more than 80 kg. Compound: 1. Modules: logic elements and triggers; operational amplifier; milliammeter; function generator; nutrition; multimeters; measuring; additional resistances; transistors; diodes; single-phase rectifier; single-phase transformer; autotransformer; frequency converter; electrical machines; power meter. 2. Electric machine unit. 3. Frame (2 pcs). 4. Set of power cables and […]

Dimensions 500x400x200 mm Weight, no more than 10 kg Composition: 1. Monoblock containing: power supply; function generator with digital frequency display; pulse generator (100, 200, 1600 Hz); pointer and digital measuring instruments; indication and control elements; SIFU; diodes (rectifier, LED, Schottky diode, zener diode, bridge); thyristors (thyristor, triac, GTO-thyristor); transistors (bipolar, field-effect and optotransistor); operational […]

Overall dimensions (WxHxD): 860x610x300 mm. Weight, no more than 30 kg. Compound: 1. Modules: power supply; multimeters; circuits with distributed parameters; measuring (2 pcs.); function generator; power meter. 2. Typesetting field. 3. Set of minimodules. 4. Frame. 6. Set of power cables and connecting wires. 7. Technical description of the laboratory stand. 8. Methodological instructions […]

Overall dimensions (WxHxD): 400x180x250 mm. Weight, no more than 6 kg. Compound: 1. Monoblock containing: single-phase transformer; three-phase transformer; resistive linear elements; digital power meter; digital voltmeter; digital ammeter; switching, indication and control elements. 2. Set of power cables and connecting wires. 3. Technical description. 4. Methodological instructions for carrying out laboratory work.

The simulator is a virtual analogue of a real training stand “Electrical Circuits” and allows you to perform laboratory work on electrical circuits of direct current and alternating current, taking into account real static and dynamic characteristics, mathematical models of real physical elements and devices. List of laboratory work performed on the simulator: 1. Electrical […]

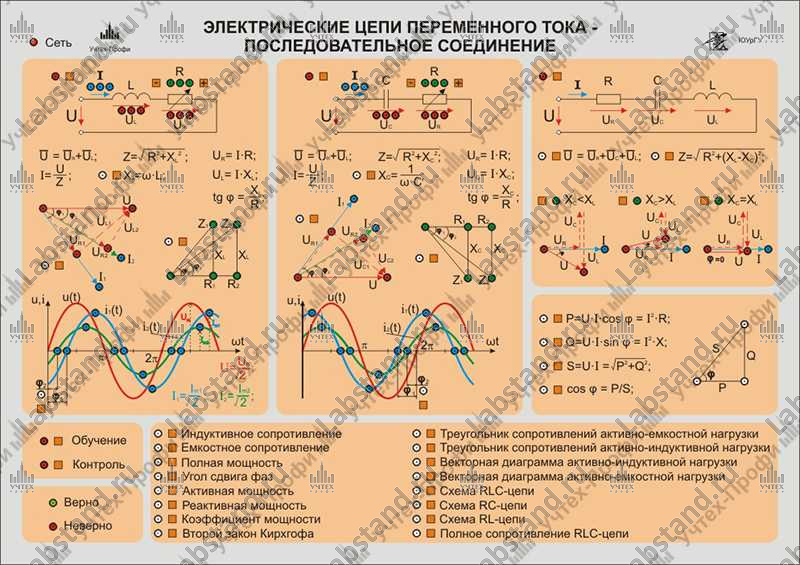

Compound: – a dynamic light tablet containing: controls; equivalent circuit, oscillograms, vector diagrams and basic formulas of an RL circuit with adjustable active resistance; equivalent circuit, oscillograms, vector diagrams and basic formulas of an RC circuit with adjustable active resistance; equivalent circuit, oscillograms, vector diagrams and basic formulas of an RLC circuit; power triangle with […]

The electronic educational and methodological complex allows you to combine a complete set of materials for the discipline/module, visually and interactively reflect the theoretical and control parts. Components of the EUMK: Work program for the discipline/module. Theoretical material — electronic textbook. Test and assessment tasks. Demonstration materials. The interactive capabilities of the electronic textbook allow […]

Overall dimensions (WxHxD): 600x200x300 mm. Weight, no more than 13 kg. Compound: 1. Monoblock containing: unregulated power supply, regulated power supply, function generator, field for installing functional modules, measuring instruments, discretely adjustable active resistance, discretely adjustable capacitance. 2. Hardware-software measuring complex consisting of: input-output module, laptop, software (DeltaProfi, included in the Unified Register of Russian […]

Overall dimensions (WxHxD): 500x390x180 mm. Weight, no more than 10 kg. Compound: 1. Monoblock containing: DC and AC power supplies; pointer and digital electrical measuring instruments; power meter (U, I, f, φ, cosφ); RLC — linear and nonlinear elements of electrical circuits, indication and control elements. 2. Power cable. 3. Set of connecting wires. 4. […]

Overall dimensions (WxHxD): 1060x1350x650 mm. Weight, no more than 60 kg. Compound: 1. Modules: power supply; multimeters; measuring (2 pcs.); additional resistances; function generator; single-phase transformer; frequency converter; electrical machines; power meter. 2. Typesetting field. 3. A set of laboratory mini-modules. 4. Electric machine unit. 5. Laboratory table. 6. Set of power cables and connecting […]

Overall dimensions (WxHxD): 3200x1620x650 mm. Weight, no more than 270 kg Compound: 1. Modules of electrical circuits and electronics: power supply; multimeters; function generator; input Output; power meter (U, I, P, f, cosφ, φ); measuring 2. Modules of electrical machines and electric drives: power supply of the stand; food 2; power meter; additional resistances (2 […]

Compound: Module «Power module and USB oscilloscope» Module «Function Generator» Module “Hard Magnetic Materials” Module “Soft magnetic materials. Temperature coefficient of resistance/capacitance» Module «RLC Meter» Module «Multimeters» Module “Barrier effect. Photoconductivity» Module “Forward and inverse piezoelectric effect” Set of minimodules A set of conductors on the topic “Electrical conductivity” Hall Sensor Insulation resistance measuring device […]

Overall dimensions (WxHxD): 1730x1350x650 mm. Weight, no more than 160 kg. Compound: 1. Modules: logic elements and triggers; operational amplifier; milliammeter; function generator; nutrition; multimeters; measuring; additional resistances; transistors; diodes; single-phase rectifier; single-phase transformer; autotransformer; frequency converter; electrical machines; universal digital power meter. 2. Electric machine unit. 3. Laboratory table (2 pcs). 4. Set of […]

Dimensions 1060x600x300 mm Weight, no more than 50 kg Composition: 1. Modules: power supply; multimeters; milliammeters; function generator; diodes; single-phase rectifier; operational amplifier; logical elements and triggers; transistors; thyristors. 2. Frame. 3. Set of power cables and connecting wires. 4. Technical description of the laboratory stand. 5. Guidelines for conducting laboratory work..

Overall dimensions (WxHxD): 1060x610x300 mm. Weight, no more than 30 kg. Compound: 1. Modules: function generator; power meter; multimers; physical foundations of electrical engineering (electromagnetic interaction); nutrition; chain with distributed parameters; measuring (2 pcs.). 2. A set of modules for studying static plane-parallel fields. 3. Typesetting field. 4. A set of laboratory mini-modules. 5. Frame. […]
