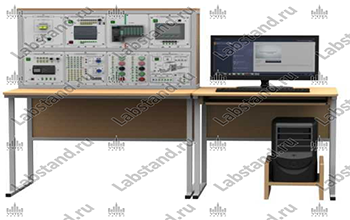

Dimensions 1530x1340x650 mm Weight, no more than 40 kg Compound: 1. Modules: power supply, programmable logic controller S7-1200; module of distributed peripherals, operator panels; LOGO! logic module module; control object module, indication and control module, methodical furnace. 2. A set of auxiliary equipment for laboratory work. 3. Personal computer. 4. Laboratory table. 5. Computer desk. […]

Dimensions 700x650x350 mm Weight, no more than 20 kg Compound: 1. Modules: stand power supply, operator panel, temperature, proportional valve, input-output panel, frequency converter. 2. Electric machine unit (asynchronous squirrel-cage motor with flywheel). 3. Laptop. 4. Set of power cables and connecting wires. 5. Technical description of the laboratory stand. 6. Guidelines for conducting laboratory […]

Dimensions 1200x300x300 Weight, no more than 30 kg Compound: 1. Monoblock with power supply, programmable logic controller module and discrete and analog input/output module. 2. Physical model of the control object — “Temperature”. 3. Laptop. 4. Set of power cables and connecting wires. 5. Software (CD). 6. Technical description of the laboratory stand. 7. Guidelines […]

Dimensions 1200x1800x800 mm Weight, no more than 100 kg Compound: 1. Air container with a heater. 2. Air tank cooling fan. 3. Thermocouple (ХК), Thermocouple (ХА). 4. Bimetallic dial thermometer. 5. Copper resistance thermometer. 6. Platinum resistance thermometer. 7. Monoblock “Fundamentals of the theory of automatic control.” 8. Programmable logic controller. 9. Meter-regulator. 10. RS485/USB […]

Dimensions 1200x300x300 Weight, no more than 40 kg Compound: 1. Monoblock with power supply, programmable logic controller module and discrete and analog input/output module. 2. Physical model of the control object — “Pressure”. 3. Laptop. 4. Set of power cables and connecting wires. 5. Software (CD). 6. Technical description of the laboratory stand. 7. Guidelines […]

Dimensions 1800x1200x800 mm Weight, no more than 100 kg Compound: 1. Compressor. 2. Receiver with pneumatic distributor. 3. Overpressure sensor. 4. Digital pressure sensor with analog output. 5. Intelligent pressure sensor with Modbus protocol support. 6. Electric contact pressure gauge. 7. The pressure gauge is exemplary. 8. Monoblock “Fundamentals of the theory of automatic control.” […]

Dimensions 1200x300x300 Weight, no more than 30 kg Compound: 1. Monoblock with power supply, programmable logic controller module and discrete and analog input/output module. 2. Physical model of the control object — “Level”. 3. Laptop. 4. Set of power cables and connecting wires. 5. Software (CD). 6. Technical description of the laboratory stand. 7. Guidelines […]

Dimensions 1200x1800x700 mm Weight, no more than 100 kg Compound: 1. Measuring container (volume 20 l). 2. Technological container (volume 60 l). 3. Electric driven pump with frequency control. 4. Frequency converter. 5. Solenoid valve. 6. Ultrasonic level sensor. 7. Capacitive sensor. 8. Membrane type hydrostatic pressure level sensor. 9. Float level sensor, discrete. 10. […]

Dimensions 1200x300x300 Weight, no more than 30 kg Compound: 1. Monoblock with power supply, programmable logic controller module and discrete and analog input/output module. 2. Physical model of the control object — “Flow”. 3. Laptop. 4. Set of power cables and connecting wires. 5. Software (CD). 6. Technical description of the laboratory stand. 7. Guidelines […]

Dimensions 2100x1600x600 mm Weight, no more than 100 kg Compound: 1. Measuring container (volume 20 l). 2. Technological container (volume 60 l). 3. Electric driven pump with frequency control. 4. Frequency converter. 5. Ultrasonic flow meter. 6. RS485/USB interface converter. 7. Electromagnetic flow meter. 8. Programmable logic controller. 9. SCADA system. 10. Personal computer. 11. […]

Dimensions 2200x1950x750 Weight, no more than 150 kg Compound: 1. Measuring container. 2. Technological container. 3. Centrifugal pump. 4. Frequency converter. 5. Adjustable valve with electric drive. 6. Ultrasonic flow meter. 7. Hydrostatic level sensor. 8. Temperature sensor. 9. Float level sensors. 10. Programmable logic controller SiemensS7-300. 11. SCADA system. 12. Personal computer. 13. Laboratory […]

Dimensions 1000 x 550 x 600 mm Weight, no more than 30 kg Compound: 1. Model of the hydraulic system consisting of: measuring container; technological container; centrifugal pump; adjustable valve; temperature sensor; level sensor; flow sensor; pressure meter; programmable logic controller. 2. Laptop. 3. Set of power cables and connecting wires. 4. Technical description. 5. […]

The scope of delivery should include: – educational and research stand; –laptop; – description of laboratory work; – passport, stand operation manual. The test bench allows you to study the structure of automatic control systems, devices and characteristics of system elements and measure parameters in dynamic mode. The guidelines contain descriptions of 49 laboratory works. […]

The scope of delivery should include: – educational and research stand; –laptop; – description of laboratory work; – passport, stand operation manual. The test bench allows you to study the structure of automatic control systems, devices and characteristics of system elements and measure parameters in dynamic mode. The guidelines contain descriptions of 65 laboratory works. […]

The complex allows you to study the structure of automatic control systems, instruments and characteristics of control system elements, programming and application of an industrial controller, and measure system operating parameters in dynamic mode. The package includes: – stand; – laptop with software; – guidelines with a description of laboratory work; – passport, stand operating […]

The kit allows you to study measuring instruments and control elements of technological parameters of liquid: flow, pressure, temperature. The guidelines contain a description of 26 laboratory works. The stand is a frame structure made of metal with a polymer coating. All stand equipment is mounted on the stand frame structure. Composition of equipment placed […]
