A0 format tablet (841 x 1189 mm) in a wall-mounted design, rigid base, framed in aluminum profile, color image. A brief description of various welding materials and their scope of application is given, a classification of welding electrodes and a system of their symbols is given, natural samples of electrodes, filler materials and welding wire […]

A0 format tablet (841 x 1189 mm) in a wall-mounted design, rigid base, framed in aluminum profile, color image. Natural samples of tools are attached to the tablet for visual and measuring control of the preparation of materials (parts) for welding, the quality of welded joints and surfacing.

Wall-mounted A0 format tablet with samples of welder personal protective equipment attached to it: suit, gloves, goggles, “Chameleon” type mask

Wall-mounted tablet with a rigid base. The geometric parameters of the weld are shown.

Wall-mounted tablet with a rigid base. The technique for making vertical welds is shown.

Wall-mounted tablet with a rigid base. The technique for making horizontal welds is shown.

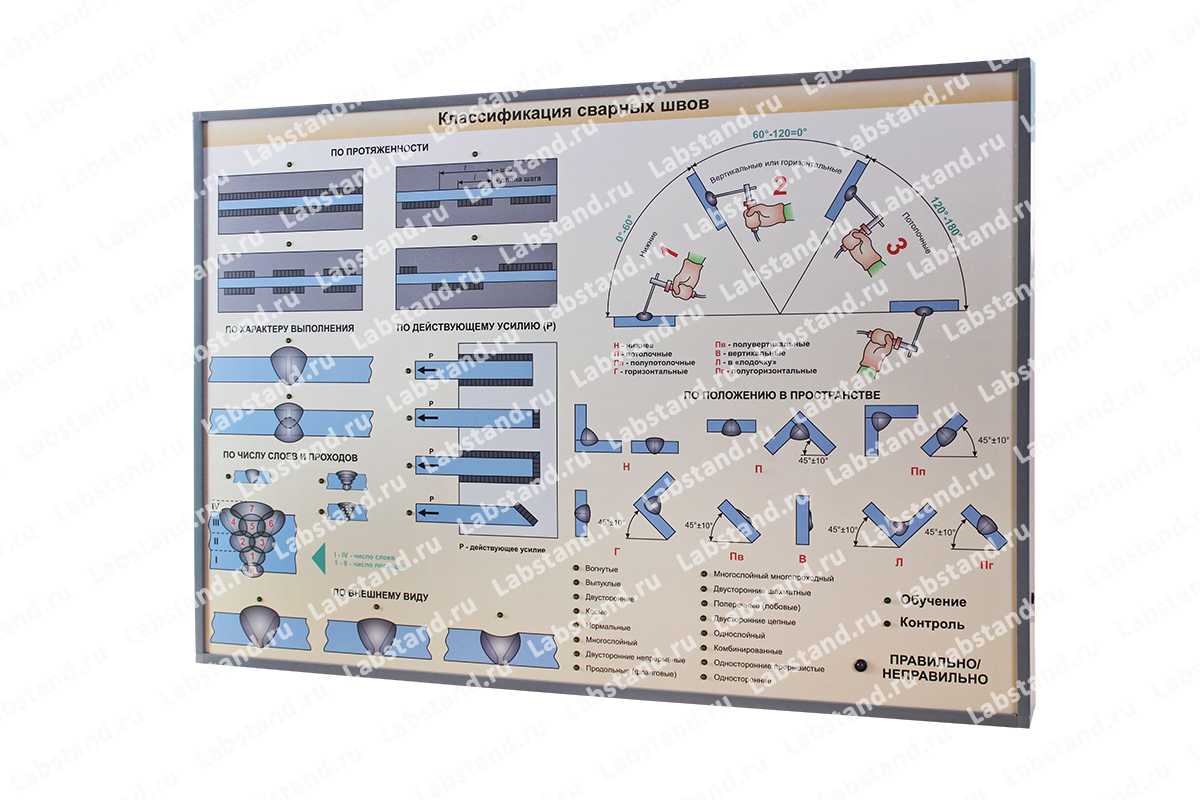

Wall-mounted tablet with a rigid base. The classification of welds by length, nature of execution, number of layers and passes, effective force, type of spatial position is shown.

Designed to study welds, their classification by length, nature of execution, number of layers and passes, effective force, type of spatial position.

Purpose. The stand-tablet is intended for studying the classification, designation and samples of welded joints in training courses in the disciplines “Machine Parts” and “Technical Mechanics” in the training of mechanical specialists of higher and secondary vocational education. Description. The tablet stand is a base made of MDF with a thickness of at least 8 […]

Tablet stands are designed for studying the design.

The electrical circuit of the stand is powered by a standard switching power supply. The power cord connector is installed on the side panel of the stand. Specifications: Powered by AC mains. Voltage 220 ± 22 V Frequency 50 Hz Power consumption no more than 50 W Overall dimensions, no more: 850x90x610 mm, weight 5 […]

Tablet stands are designed to study the design and use of devices.

Compound: — frame structure (PVC profile with a width of no more than 90 mm; fiberboard with a thickness of no more than 3 mm; PVC film with a full-color image with a resolution of at least 1400 dpi; — set of suspensions; — an electronic logical device based on the ADCS-P-5 controller, which implements […]

Posters on the topic “Electric arc resistance welding” Purpose: to familiarize yourself with various information on the topic “Electric arc resistance welding” when conducting theoretical classes in the system of primary, secondary and higher vocational education for the specialties “Welder (electric and gas welding and gas welding works)”, “Welding production «, «Equipment and technology of […]

The light-dynamic stand-tablet is designed for mastering educational material on the topic of electric arc welding in specialized educational institutions. The stand is a rigid front panel made of MDF with a thickness of at least 8 mm in a plastic frame with a thickness of at least 90 mm and no more than 100 […]

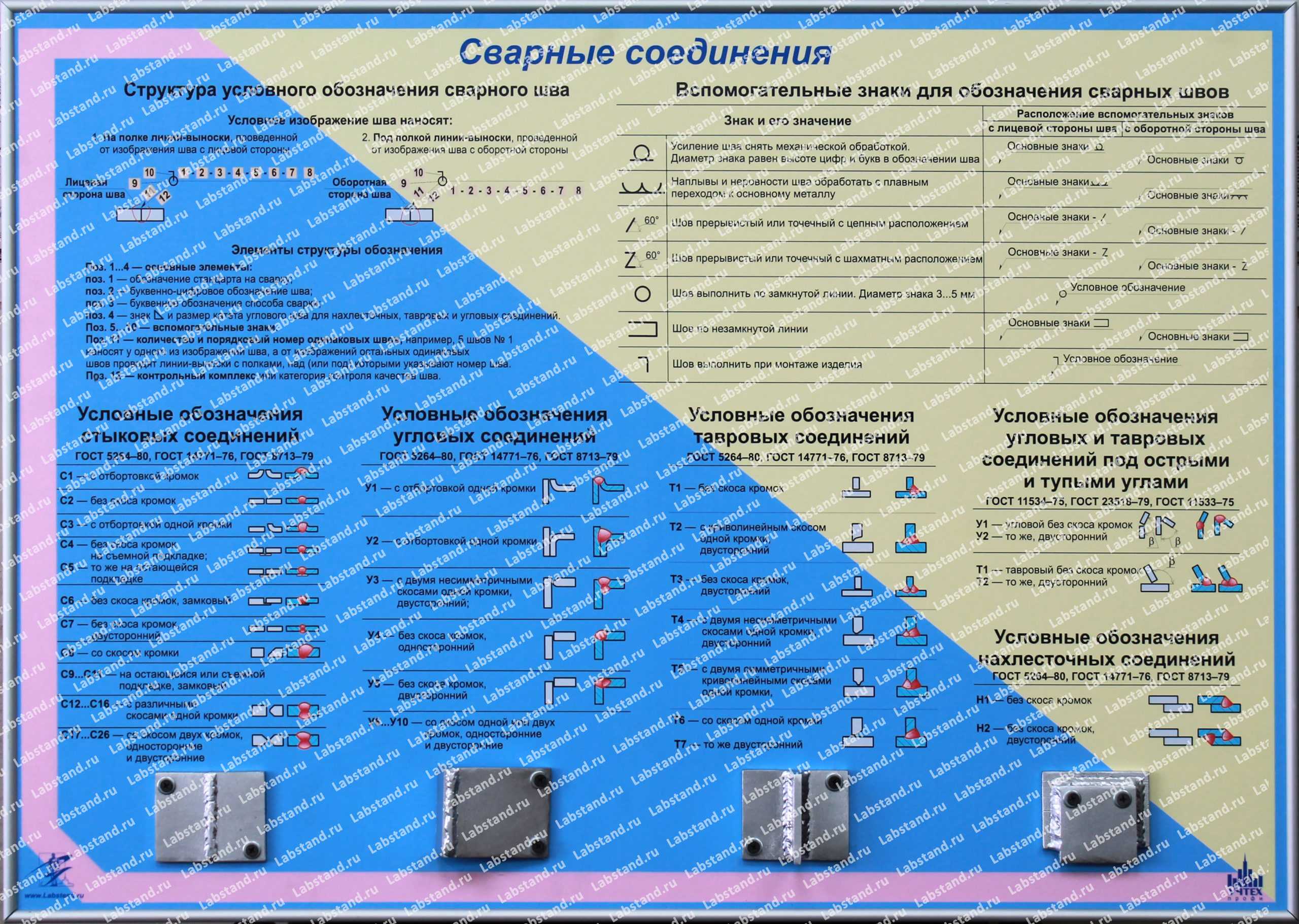

A tablet with the ability to be used in wall-mounted and desktop versions with samples of typical welded joints attached to it. The tablet contains a system of symbols for butt, corner, T-joints and natural samples of welded joints. Overall dimensions 855x610x10 mm Weight 2 kg Contents of delivery: — Tablet — Fastening elements — […]

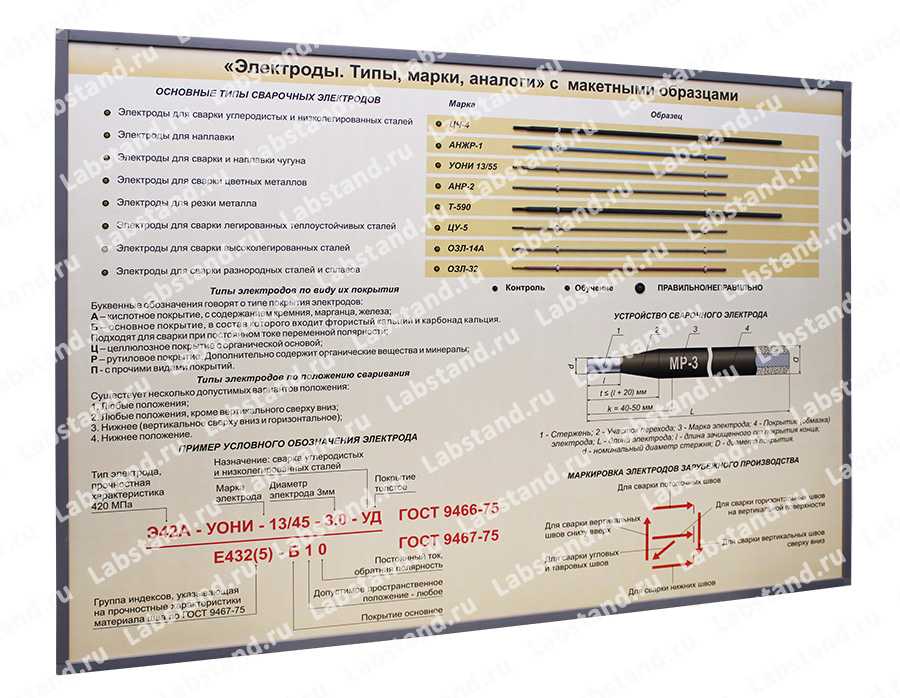

A light-dynamic stand-tablet with prototypes is intended for mastering educational material on the topic “Electrodes. Types, brands, analogues» in specialized educational institutions. Description: The stand is a rigid front panel made of MDF 8 mm thick, in a plastic frame 90 mm thick. A polymer substrate with a color image and description on the topic […]
