The complex provides research into the phenomenon of shaft resonance. The shaft drive is carried out by an asynchronous electric motor with frequency control of the rotation speed. Shaft movements are recorded by non-contact inductive sensors. Composition: frame structure with protective casing; the shaft being examined; electric motor; a frequency converter; sensors for rotation speed […]

Provides study of the designs of bearing units, study of methods for adjusting rolling bearings, and development of skills in adjusting angular contact rolling bearings. Compound: 1. Welded frame. 2. A set of bearing housings for installing angular contact bearings (3 pcs). 3. Set of shafts with handwheels (3 pcs.) 4. Device for adjusting the […]

The complex provides the study of sliding bearings, determining the moment and coefficient of friction depending on the materials of the rubbing pairs and loading modes. Composition: frame structure with panel; shaft driven by a gear motor; torque sensor; shaft speed sensor; rotation axis tilt sensor; four weights with anti-friction bushings (caprolon and bronze); electrical […]

The complex provides the study of the dependence of reactions in the supports of shafts and axles on the magnitude and type of loading of the shaft and axle. The complex allows you to simulate the load from various types of gears. Compound: — spatial frame structure; — a beam simulating a shaft; — shaft […]

The stand provides a study of the dependence of reactions in the supports of shafts and axles on the magnitude and type of loading of the shaft and axle. The stand allows you to simulate the load from various types of gears. Compound: — spatial frame structure; — a beam simulating a shaft; — shaft […]

The desktop training stand “Rolling Bearings” contains a base with a bearing assembly mounting housing mounted on it, three rolling bearings, two of which are supporting the shaft, and an adjustable load is applied to the third. the shaft is driven by an electric drive with the ability to regulate the rotation speed and a […]

The complex allows you to determine the deflection of a two-support beam depending on the location of the load application point and the types of supports. Compound: — loading module with force sensor and displacement sensor; — device for installing a two-support beam; — a set of double-pored beams of the same diameter with different […]

The stand allows you to determine the deflection of a two-support beam depending on the location of the load application point and the types of supports. Compound: — hydraulic loading module with manual drive and displacement sensor; — device for installing a two-support beam; — a set of double-pored beams of the same diameter with […]

Tabletop training stand “Pressure distribution in a hydrodynamic bearing” Contains a bath with lubricating fluid. The bath contains a bearing housing made of transparent material with pressure tapping points located around the circumference of the housing. Pressure is measured by piezometers. A shaft driven by a variable-speed motor enters the bath through a seal. The […]

The laboratory stand must be designed to perform a set of laboratory work in the courses Technical Mechanics, Machine Parts. The stand should provide study of the working processes of plain and rolling bearings. The stand must be a tabletop frame structure. An electric motor must be installed inside the frame. The electric motor must […]

The stand allows you to determine the mutual runout of shafts and eliminate it by installing calibrated shims under the supports and displacing the supports. The stand consists of a base on which plates are installed, forming base surfaces for stands with shafts. Four supports are provided on the lower surfaces of the posts for […]

The stand allows you to determine the mutual runout of shafts and eliminate it by installing calibrated shims under the supports and displacing the supports. The stand consists of a base, two shaft supports connected by a coupling, and calibrated pads for alignment. Tools for alignment: ruler, probes, dial indicator ICH-10, gear-lever indicator, laser alignment […]

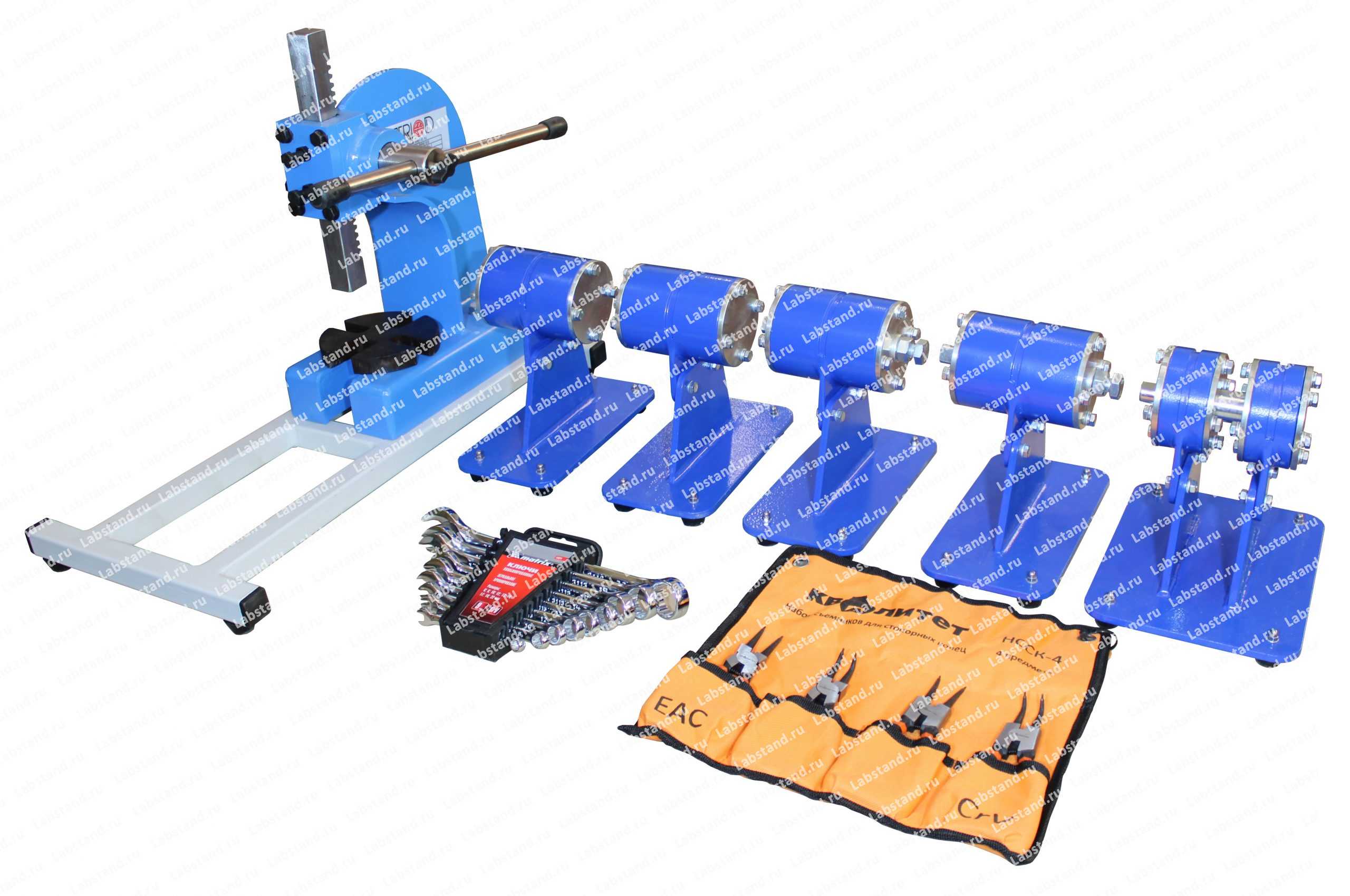

The simulator bench is designed to obtain practical and physical-motor skills when assembling bearing units of various types. Compound: — assembly of angular contact tapered bearings with floating support; — assembly of angular contact tapered bearings “by surprise”; — assembly of angular contact bearings “extended”; — shaft assembly with two radial ball bearings in one […]

The stand is designed to teach the basics of balancing rotors in their own supports, aligning shafts and simulating various types of equipment defects consisting of several shafts. Measuring instruments for vibration diagnostics and shaft alignment are not included in the delivery package. Stand composition: – a shaft with a diameter of 20 mm with […]

The stand is designed to teach methods of repairing shaft seals with students acquiring practical skills in replacing seals. The stand contains: – a bench with a vice; – a plate with detachable and one-piece bearing housings installed on it; – a set of reinforced cuffs for shafts; – a set of split shaft seals; […]
