Allows you to study the rules of construction and the scope of application of overhead power lines, gain skill in installing an overhead line (OHL) with self-supporting insulated wires (SIP), and study the fittings used in the installation. Stand composition: SIP — self-supporting insulated wire of different sections availability wooden supports availability fittings for installation […]

The stand allows for the synthesis and assembly of various circuits of switchgear of electrical stations and substations. Specifications: — Dimensions no more than 900*500*700 (W*D*H) — Powered by AC 220 V, 50 Hz — Maximum power consumption 200 W — Operating temperature 5…40 °C — Number of simultaneously possible participants in research work at […]

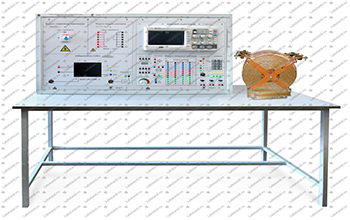

The stand is designed to study the purpose, design, principle of operation, technical characteristics, and scope of application of current-limiting reactors. The kit allows you to study: 1. Purpose and design of single and dual reactors, their main components and parts; 2. Operating principle in normal operation and during short circuits (limiting short circuit currents, […]

The laboratory stand consists of a stand and a set of tablets. The stand is a monoblock structure with a table in which a working switch, contactor, magnetic starter, load device for generating operating currents, measuring instruments, a current source, and protective equipment are mounted. The controls and functional elements of the study objects are […]

The stand is designed to study the purpose, design, principle of operation, technical characteristics, and scope of application of circuit breakers up to 1000 V. General characteristics: The kit allows you to study: 1. Purpose and design of automatic circuit breakers (AB), their main components and parts (contacts and contact system, arc extinguishing system, mechanism […]

Allows you to study the methodology for testing starting equipment and equipment for suitability, identify patterns in the operation of new electrical equipment and existing ones, compare the results obtained with reference data and standard indicators of the equipment. Technical characteristics of the stand: — Overall dimensions (WxHxD): no more than 1200x950x600 mm. — Supply […]

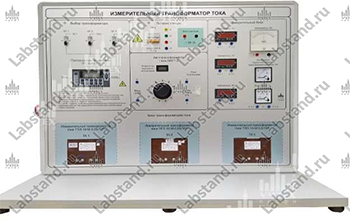

The stand is designed to study the purpose, design, principle of operation, technical characteristics, and scope of application of measuring current transformers. The kit was developed taking into account the requirements of the PUE and includes elements of the work program. The kit allows you to study: — purpose and design of measuring current transformers, […]

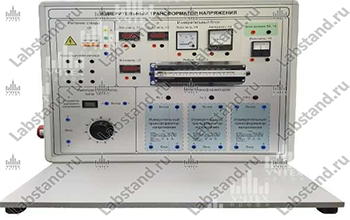

The kit is designed to study the purpose, design, principle of operation, technical characteristics, and scope of application of instrument voltage transformers (VT). The kit was developed taking into account the requirements of the PUE and includes elements of the work program. The kit allows you to study: — purpose and design of voltage measuring […]

The tablet is intended for studying the purpose, design, technical characteristics, and area of ​​application of open switchgear devices (OSD). General characteristics. 1. The stand allows you to study: — purpose and design of outdoor switchgear, main components and apparatus; — location of outdoor switchgear equipment in accordance with the electrical diagram; — features of […]

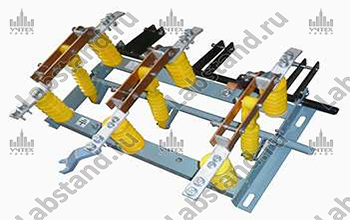

The tablet is a rectangular base made of chipboard with small legs. An anodized aluminum substrate with durable color images of circuits and names is attached to the surface. On this basis, the parts of the indoor disconnector are located in a strict sequence, allowing you to imagine and study the design. The tablet is […]

The tablet is a rectangular base made of chipboard with small legs. An anodized aluminum substrate with durable color images of circuits and names is attached to the surface. On this basis, the parts of the outdoor disconnector are located in a strict sequence, allowing you to imagine and study the design. The tablet is […]

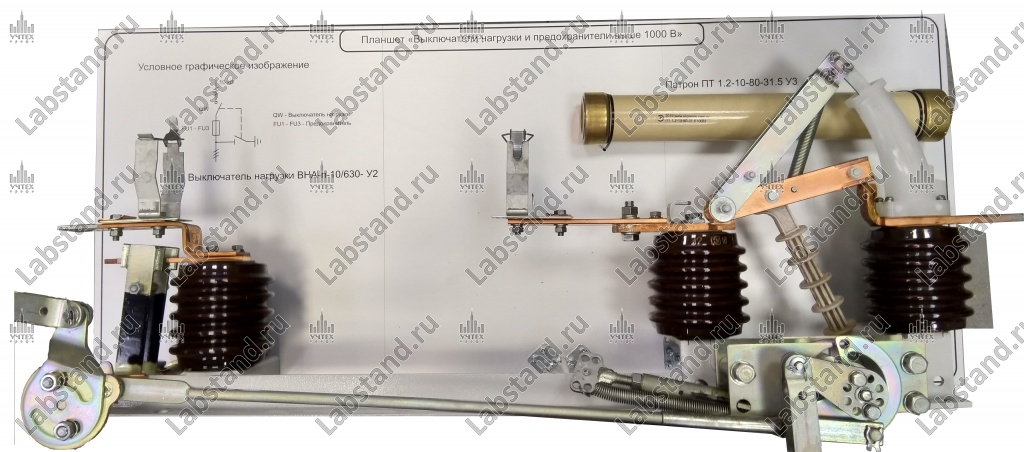

The tablets are rectangular bases made of chipboard with small legs. An anodized aluminum substrate with durable color images of circuits and names is attached to the surface. On this basis, the parts of the load switch and fuses are located in a strict sequence, allowing you to visualize and study the design. The tablet […]

The tablet is a rectangular base made of chipboard with small legs. An anodized aluminum substrate with durable color images of circuits and names is attached to the surface. On this basis, the parts of the surge suppressor are located in a strict sequence, allowing you to visualize and study the design. The tablet is […]
