Installation and adjustment of automation systems (WSR)
Standard set of training equipment “Installation and adjustment of automation systems”, manual version with control cabinet, MiN-SA-ShR
Dimensions 500x400x250 mm (without engine) Weight, no more than 25 kg Compound: 1. Electrical cabinet, including: circuit breaker, intelligent relay SIEMENS LOGO, contactor (3 pcs.), electromagnetic relay (2 pcs.), frequency converter, indication and control elements, combined digital device (timer, counter and tachometer) . 2. Electric machine unit (asynchronous squirrel-cage motor with flywheel and inductive sensor). […]

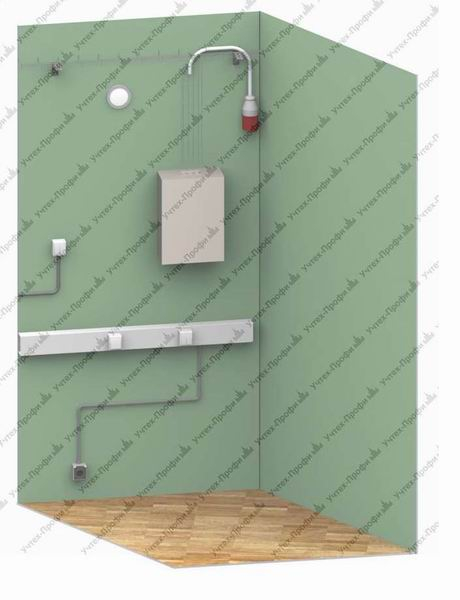

A standard set of educational equipment “Electrical installation and adjustment of power supply systems”, a set for preparation for the professional skills competition WSR, EMiN-SES-WSR
Dimensions 1200 x 2400 x 1200 mm Weight, no more than 70 kg Compound: 1. Room for electrical installation. 2. Mounting board. 3. Set of installation equipment. 4. Installation kit. 5. A set of field equipment. 6. Tool set. 7. Technical description. 8. Guidelines.
A standard set of educational equipment “Electrical installation and adjustment of electric motor control systems”, a set for preparation for the professional skills competition WSR, EMiN-SUD-WSR
Dimensions 1200 x 2400 x 1200 mm Weight, no more than 70 kg Compound: 1. Room for electrical installation. 2. Double-leaf mounting panel. 3. Set of installation equipment. 4. Installation kit. 5. A set of field equipment. 6. Tool set. 7. Technical description. 8. Guidelines.
A standard set of educational equipment “Electrical installation and adjustment of lighting systems”, a set for preparation for the competition of professional skills WSR, EMiN-СО-WSR
Dimensions 2000 x 2100 x 1000 mm Weight, no more than 15 kg Compound: 1. Room for electrical installation. 2. Mounting board. 3. Installation equipment set 1. 4. Installation kit 2 (DALI). 5. Installation kit 6. Set of field equipment. 7. Tool kit. 8. Technical description. 9. Guidelines.

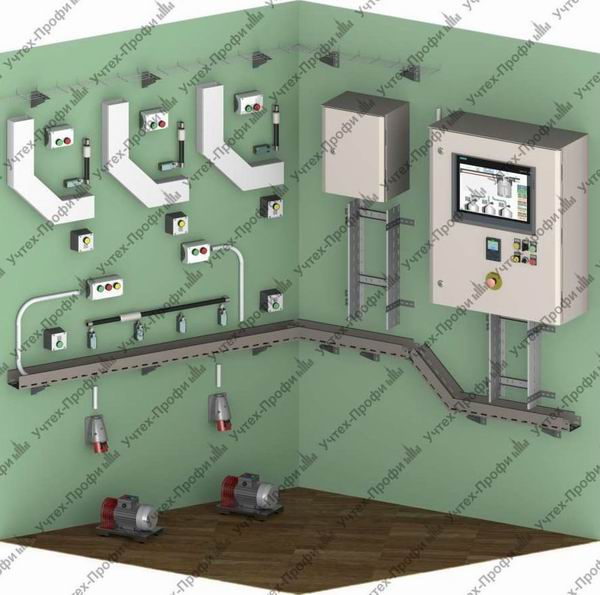

A standard set of training equipment “Electrical installation and adjustment of control systems in the maximum configuration”, a set for preparation for the competition of professional skills WSR, EMiN-MAX-WSR
Dimensions 2400 x 2700 x 1200 mm Weight, no more than 50 kg Compound: 1. Kit for installing the power supply system. 2. Lighting system installation kit. 3. Kit for installing an automatic engine control system. 4. Frame for electrical installation work. 5. Tool kit. 6. Laptop with pre-installed software. 7. Set of consumables. 8. […]
Standard set of training equipment “Electrical installation and adjustment of control systems. Troubleshooting», kit for preparing for the WSR professional skills competition, EMiN-PN-WSR
Dimensions 650 x 1000 x 285 mm Weight, no more than 50 kg Compound: 1. Electrical cabinet containing: – Automatic switch (2-pole) – 1 piece; – Intermediate modular relay – 4 pcs; – Contactor with additional unit. contacts – 10pcs; – Electromechanical intermediate relay – 4 pcs; – Manual push-button starter with additional unit. contacts […]
A standard set of educational equipment “Electrical installation and adjustment of industrial automation systems, basic level”, a set for preparation for the professional skills competition WSR, EMiN-PA-BAZA-WSR
Dimensions 2400 x 2700 x 1200 mm Weight, no more than 50 kg Compound: 1. Control panel consisting of: programmable logic controller SIEMENS S7-1200; operator touch panel SIMATIC KTP700; frequency converter SINAMICS G120; set of installation equipment (circuit breakers, contactors), installation kit (DIN rails, busbars, limiters, mounting wire, cable duct). 2. A panel with an […]
A standard set of educational equipment “Electrical installation and adjustment of industrial automation systems, professional level”, a set for preparation for the competition of professional skills WSR, EMiN-PA-PROFI-WSR
Dimensions 2400 x 2700 x 1200 mm Weight, no more than 50 kg Compound: 1. Control panel consisting of: programmable logic controller; operator touch panel; frequency converter; set of installation equipment (circuit breakers, contactors), installation kit (rails, busbars, limiters, installation wire, cable channel). 2. A panel with a distributed peripheral station and input/output modules for […]
A standard set of educational equipment “Electrical installation and adjustment of industrial automation systems, professional level”, a set for preparation for the competition of professional skills WSR, EMiN-PA2-PROFI-WSR
Dimensions 2400 x 2700 x 1200 mm Weight, no more than 50 kg Compound: 1. Control panel consisting of: programmable logic controller; operator touch panel; frequency converter; set of installation equipment (circuit breakers, contactors), installation kit (rails, busbars, limiters, installation wire, cable channel). 2. A panel with a distributed peripheral station and input/output modules for […]
A standard set of educational equipment “Electrical installation and adjustment of industrial automation systems — troubleshooting, professional level”, a set for preparation for the professional skills competition WSR, EMiN-PA2-PN-PROFI-WSR
Dimensions 600 x 800 x 500 mm Weight, no more than 50 kg Compound: 1. Control cabinet No. 1 2. Control cabinet No. 2 3. Set of connecting and power cables 4. Licensed software 5. Guidelines
