Description

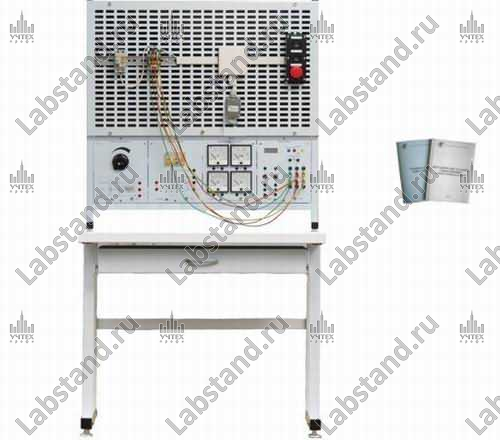

Compound:
Module «Power module»
Module «Measuring module»
Module «Autotransformer»
Module “Stopwatch and lighting fixtures”

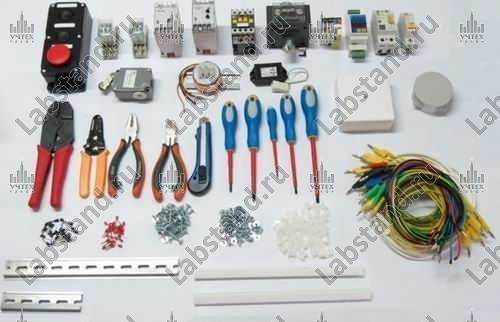

Set of components “Electrical installation of electrical devices”
Mounting panel
Frame with two-level frame
Set of connecting conductors
Guidelines
Technical description

Technical parameters of the kit:
AC supply voltage — 220V Supply voltage for laboratory modules — 24V
Supply voltage frequency — 50Hz
Power consumption — no more than 80W Operating temperature range — +10…+35˚С
Humidity — up to 80%
Overall dimensions: 862x265x875 mm (LxWxH), weight no more than 50 kg.
List of topics, laboratory work and experiments
1. Technology of electrical installation work.
2. Electrical installation of circuits using DC relays.
3. Electrical installation of circuits using AC relays.
4. Electrical installation of circuits using AC contactors.
5. Electrical installation of circuits using a magnetic AC starter.
6. Electrical installation of circuits using self-restoring fuses.
7. Electrical installation of circuits using circuit breakers with a thermal release and an overcurrent release.
8. Electrical installation of circuits using a residual current device (RCD).
9. Electrical installation of circuits using time relays.
10. Electrical installation of circuits using voltage relays.
11. Electrical installation of circuits using overcurrent relays.
12. Electrical installation of circuits using thermal relays.
13. Electrical installation of circuits using a limit switch.
14. Electrical installation of circuits using non-contact sensors (switches).
15. Electrical installation of circuits using alarm devices.
16. Electrical installation of circuits using a current transformer.
17. Electrical installation of circuits using a voltage transformer.
